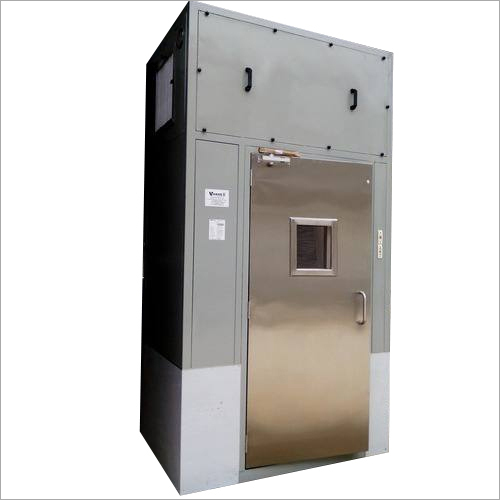

Air Shower Air Lock Chamber (Entry Exit Chamber)

Air Shower Air Lock Chamber (Entry Exit Chamber)
Air Shower Air Lock Chamber (Entry Exit Chamber)
Send Inquiry
Product Code : 24
Product Description

Air Shower Air Lock Chamber (Entry Exit Chamber)

General Specifications

Two Stage filtration

  • EU6 - Prefilter (95% down to 5 micron) for return air & fresh air intake
  • EU14 - HEPA Filter (99.999% down to 0.3 micron) at supply position
  • SS 304 doors with double walled flush glass view panels & door closer
  • Statically & Dynamically balanced Motor-blowers with suspension arrangement to reduce noise level for suction and booster
  • Differential Pressure Gauge : 1 No.
  • ON/OFF Switches
  • DOP Test Port
  • 5/15 Amp Switch Socket for external equipment
  • Control Systems – to ensure that both the doors cannot open at the same time & to ensure that both the doors will be locked during the time air flow is on.
  • Timer for setting Air Shower operation time (settable for 30 seconds to 5 minutes)
  • Emergency STOP
  • Straight Entry – Straight Exit / 90o Door Opening
  • Automatic as well as Manual Mode

Operating Conditions

  • Air cleanliness : ISO Class 5 (ISO 14644-1:1999 (E))
  • Air Velocities : 18 - 20 mps
  • Vibration Level : Minimum
  • POWER SUPPLY : 415V AC 3-Ø 50HZ
